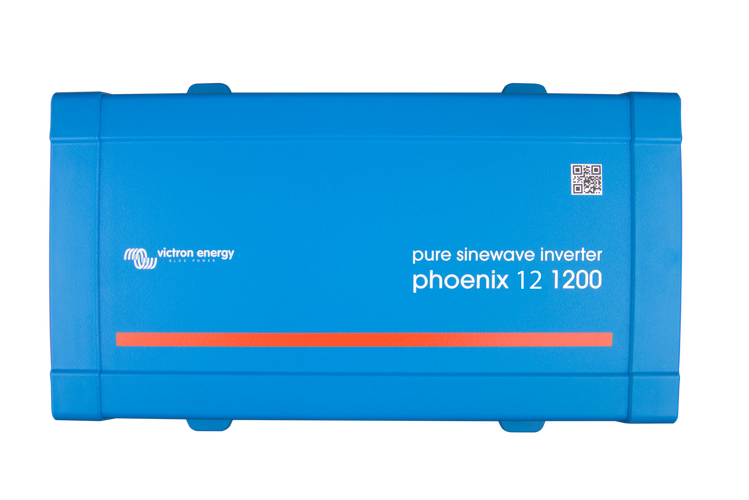

Victron Phoenix Inverter 12/1200 120V VE.Direct

Inverters can be used to supply household appliances that require 230 V/120 V AC with electricity. Batteries for "leisure applications" or "car" batteries rated at 12 V, 24 V or 48 V DC are used for this purpose.

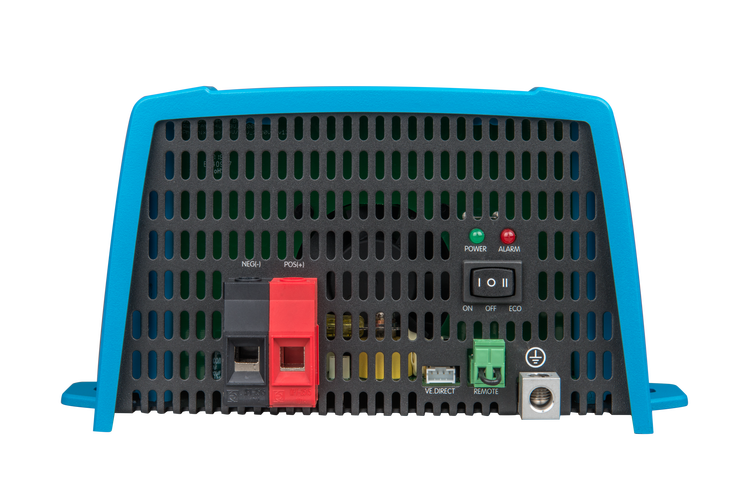

VE.Direct communication port

The VE.Direct port can be connected to the following devices: • With a computer (VE.Direct to USB interface cable required) • With Apple and Android smartphones, tablets, Macbooks or other devices (VE.Direct Bluetooth Smart Dongle required ).

Fully configurable:

• Thresholds for triggering and resetting alarms when the battery is low
• Thresholds for switching off and restarting at low battery voltage levels
• Dynamic shutdown: load-dependent shutdown threshold
• Output voltage 210 – 245 V
• Frequency 50 Hz or 60 Hz
• Threshold for ECO mode on/off and ECO mode sensor

Surveillance:

• Input and output voltage, % load and alarms Proven reliability The complete bridging with a ring transformer topology has proven itself for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or by the ambient temperature).

High inrush power

This is required to switch on loads such as voltage converters for LED lamps, halogen lamps or power tools

ECO mode

In ECO mode, the inverter switches to standby as soon as the load falls below a preset value (minimum load: 15 W). In standby mode, the inverter then switches on for a short period of time (adjustable default setting: every 2.5 seconds). If the load exceeds a preset threshold, the inverter remains switched on.

Remote controlled on/off switching

A remote-controlled on/off switch can be connected with a two-pin plug or between the positive terminal of the battery and the left contact of the two-pin plug

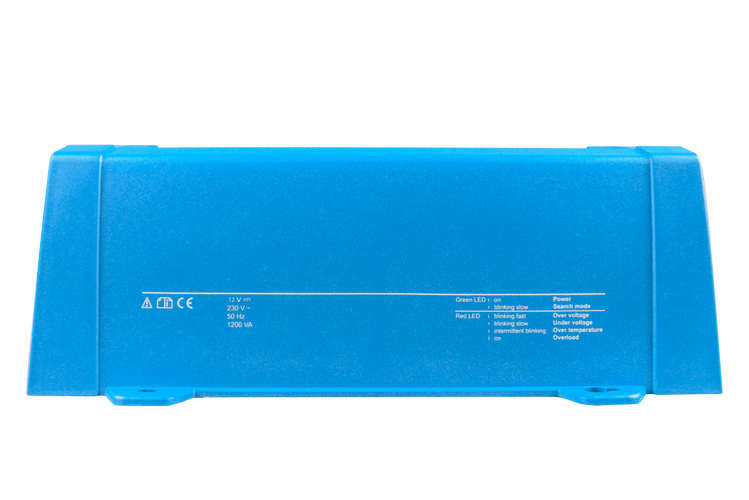

LED diagnostics

Please note the description in the manual

Load switching to another AC source:

the automatic transfer switch For our low-power inverters we recommend our Filax Automatic Transfer Switch. With the Filax the switching is very fast (in less than 20 milliseconds
