Victron SmartSolar MPPT 250/85-MC4
Victron SmartSolar MPPT 250/85-MC4
SKU:SCC125085511
In stock
Couldn't load pickup availability
SmartSolar MPPT 250/85 MC4
Solar charge controllers
The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery bank.
The SmartSolar charge controller will even recharge a severely discharged battery. It can operate with a battery voltage as low as 0 volts, provided the cells are not permanently sulfated or otherwise damaged.
MPPT: Ultra-fast tracking of the maximum power point
The MPPT VE.Can SmartSolar charger connects to a 150 or 250 volt Voc PV array and automatically detects and charges your 12, 24 or 48V battery bank with current ranging from 70 to 100A, depending on the model.
The charging settings are fully programmable and can even be set for different battery chemistries such as lead acid, lithium and others.
Remotely control your charger
The MPPT VE.Can SmartSolar charger can be remotely controlled and configured via Bluetooth using the VictronConnect app. This allows device setup, management and at-a-glance information such as battery voltage and current, PV voltage and current and historical data.
Chained additional units
The VE.Can SmartSolar charger is equipped with CAN bus connections. This enables communication with other VE.Can SmartSolar chargers. The additional devices are simply "chained" with a single RJ45 cable between the individual devices.
When connected to each other, all individual VE.Can SmartSolar chargers synchronize their charging levels. They can also send their data to a GX monitoring device via a single cable.
Remote monitoring and control
When the GX device is connected to the Internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar chargers
For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.SmartSolar control display

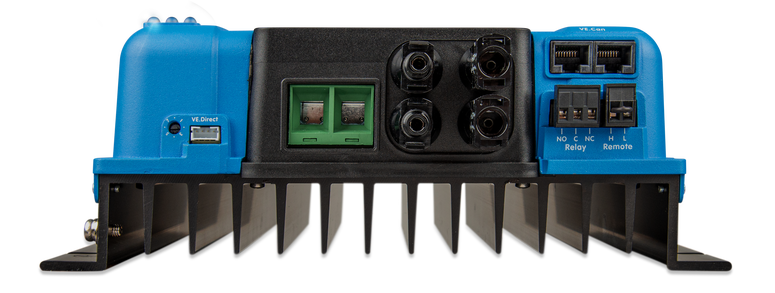

The VE.Can SmartSolar charger, like our other MPPT solar chargers, is also equipped with a VE.Direct port. This port can be used for single device monitoring or for controlling street lights. The remote on/off plug can be controlled externally from a third-party device such as a lithium battery. An optional plug-in LCD display/controller allows live data, setup and management directly from the device interface.
